UAV satcoms to enable BVLOS
Our miniaturised communication system enables satellite and cellular connectivity for UAVs, helping you on your journey towards BVLOS.
An always-available secure datalink between vehicles, remote operators and air traffic control. Facilitating partners to develop new capabilities including command and control for safety, telemetry, data services, voice and video streaming.
Global BVLOS operations
We offer global coverage through Viasat Velaris and cellular networks. Velaris is Viasat’s first service specifically designed and developed for commercial UAVs, providing customers with the certainty of ubiquitous connectivity and safety services wherever they fly.

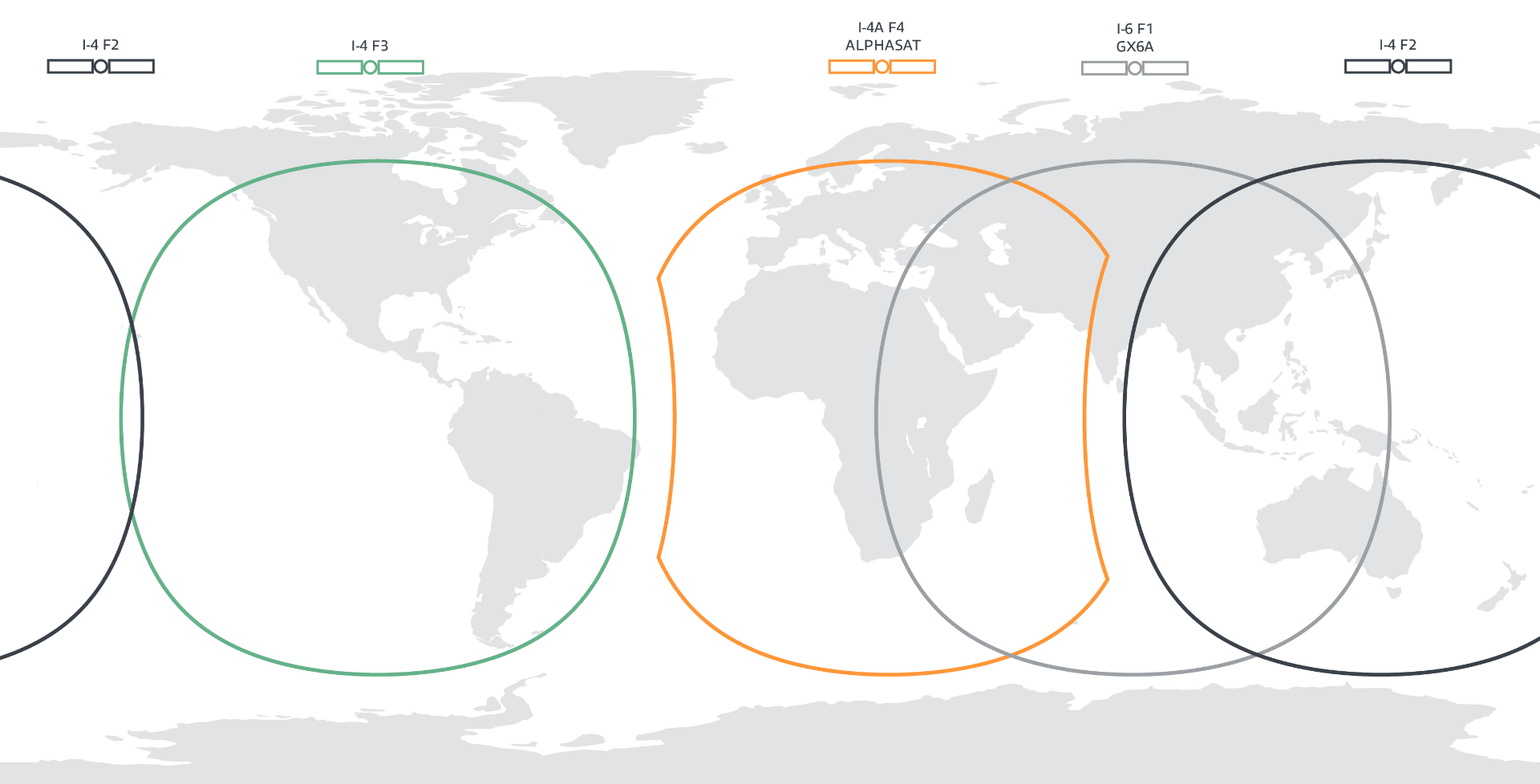

Regional Class 4 coverage
Find the right UAV satcom terminal for you

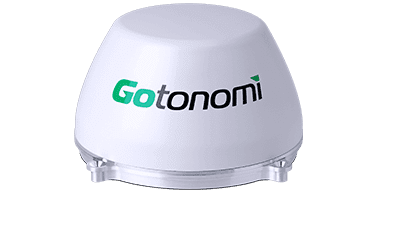

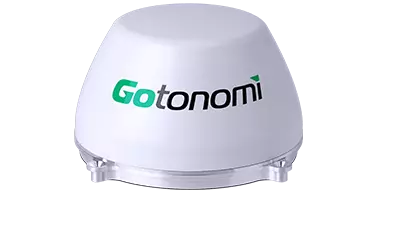

Velaris 200
Fully integrated Velaris Module and antenna
Satcom terminal with integrated antenna
- IP connectivity through ethernet
- Size: 145mm diameter, 83mm high
- Weight: 580g
- Power supply input: 18 – 36V DC
- Power consumption: 4 – 40W

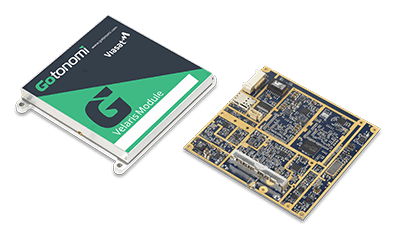

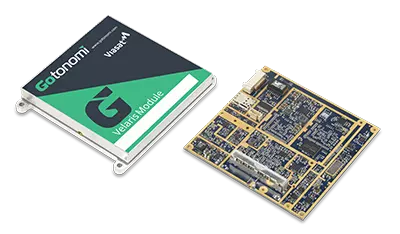

Velaris Module
Satcom only module paired with external antenna
Satcom Terminal for UAV comms
- IP connectivity through ethernet
- Size: 95mm x 95mm x 15mm
- Weight: 195g
- Power supply input: 18 – 36V DC
- Power consumption: 4 – 40W
- Pair with Gotonomi 200-A Omni antenna (240g)

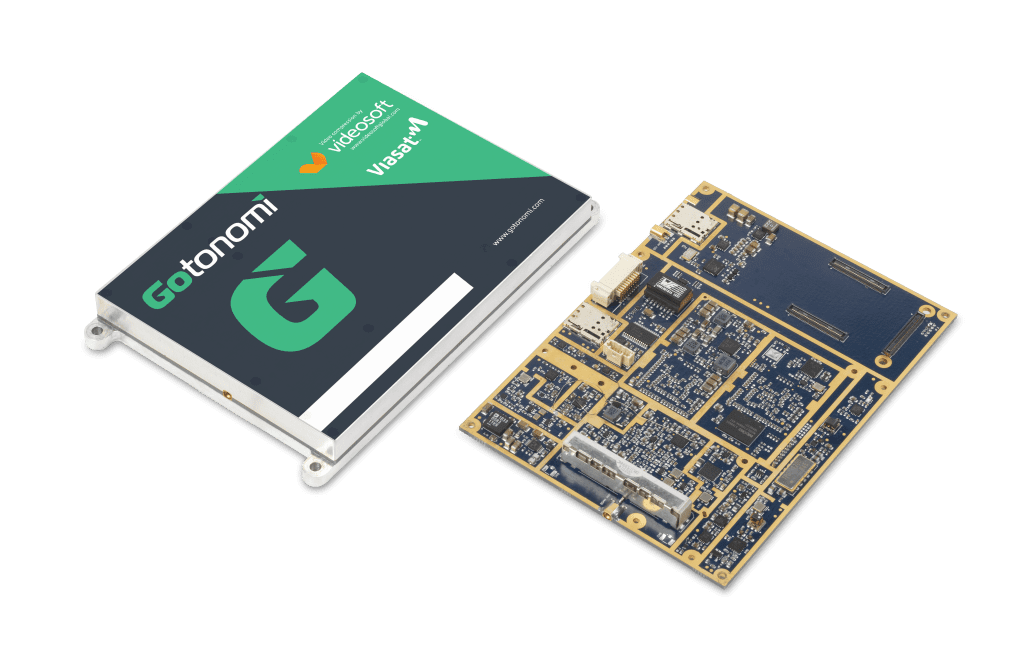

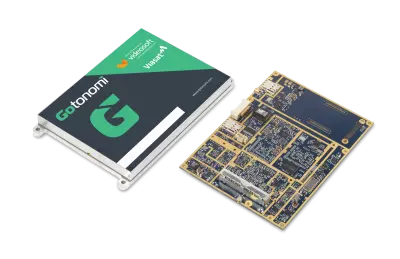

Velaris Multilink Module
Satcom and LTE module paired with external antenna
Satcom and cellular UAV terminal with edge compute
- IP connectivity through ethernet
- Integrated SoM with 4 x Cortex A54 up to 1.8Ghz and Cortex M4
- Size: 140mm x 95mm x 15mm
- Weight: 245g
- Power supply input: 18-36V DC
- Power consumption: 4 – 40W
- Pair with Gotonomi 200-A Omni antenna (240g)
Velaris Inspection Bundle
Single product bundle to enable you to start BVLOS Inspection and Surveillance operations today
Velaris Module+ with Videosoft pre-installed
- Velaris Module+ (L-Band satcom with integrated SOM)
- Velaris 200-A Omni antenna
- Enhanced airtime package
- Videosoft software licence

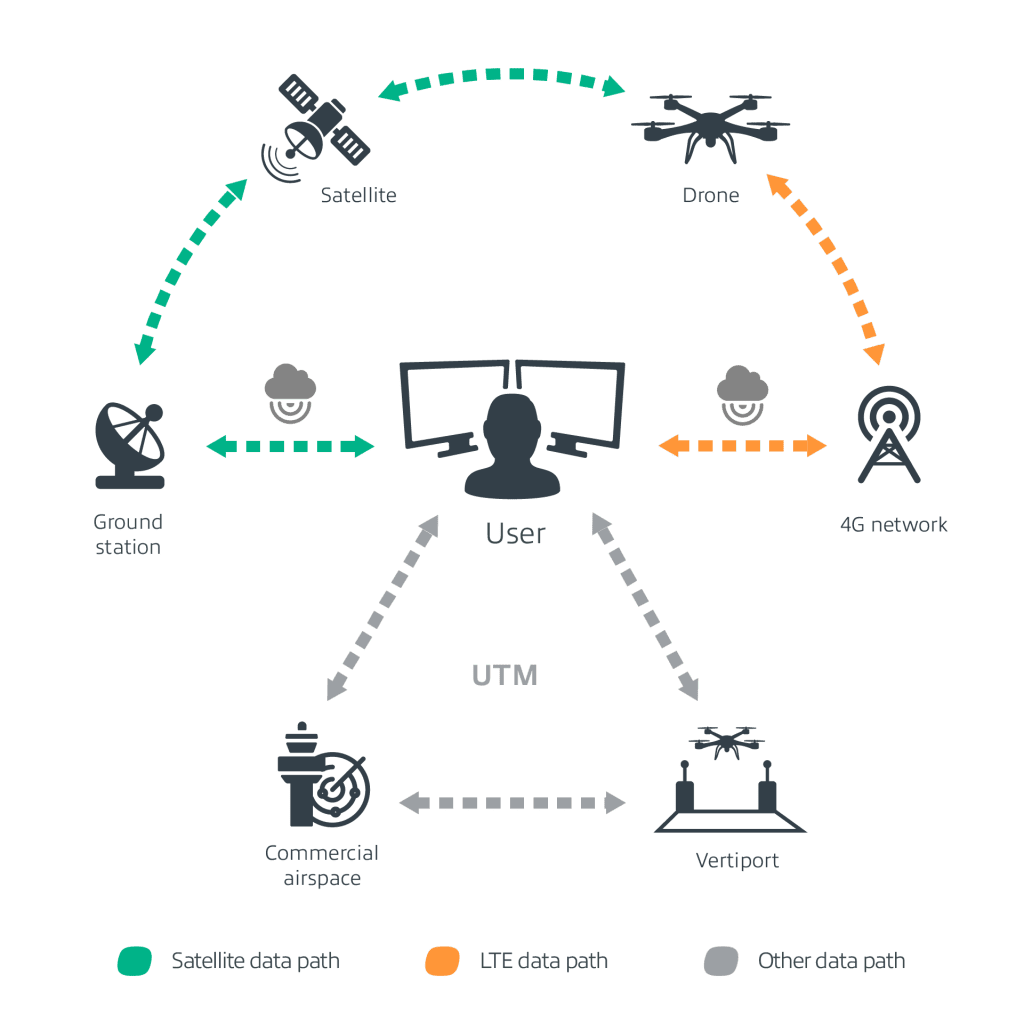

Secure, intelligent routing of satellite and cellular data
- A reliable, secure and rich platform for UAV service and application development.
- Facilitating secure, intelligent routing of satellite and cellular data through SDWAN connection to cloud services.
- Seperate path and QoS for C2 and telemetry data.
- Our Velaris multi-link module includes an on board edge compute engine, allowing easy integration of airframe elements (e.g. sensors).

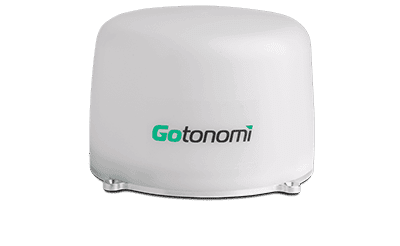

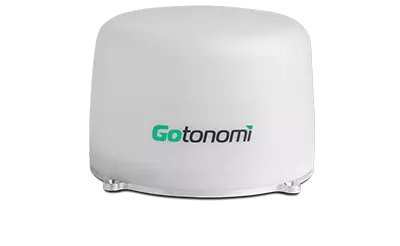

Lightest weight omni-directional antenna
200-A Omni
Omni-directional stand-alone antenna specifically designed for use with Velaris terminals
- Designed for L-Band Satcom
- 210g (7.4 oz)
- 104mm Diameter (4.1”)
- 72mm Height (2.8”)
- SMA Jack connection
- 4x M4 mounting holes
Orders being taken for delivery of Commercial, CE marked/FCC ID products from early 2025
Our terminals have been tested in BVLOS flight trial operations in the US, Canada, Brazil, Europe and Australia.
Products are Viasat type-approved with in-country safety certification.
Gotonomi hardware is shipped with airtime to suit your needs, integration support and 24/7 helpdesk.
Deployable on all UAV platforms, from small lightweight quadcopters to GA aircraft. Contact us today.
Partnering with:
Your partner for aerospace development
TTP deliver science & technology driven innovation to clients in a wide range of sectors, including aerospace. We offer UAV operators our extensive experience in the development of terrestrial and satellite communication solutions, sensors, systems integration and autonomous technologies.
Delivering the right connectivity to unlock the potential of UAVs
Viasat provides secure communications for commercial UAVs to fly Beyond Visual Line of Sight and seamlessly integrate with aircraft in commercial airspace. It allows operators to securely send their UAVs on long distance flights and access a variety of value-added applications, such as real-time tracking and remote operation.
The Market’s Lowest Bandwidth Video Streaming Solution ┃ Stream from 1kbps
Industrial-grade video streaming solutions for environments where network speed is limited and/or variable. Guaranteeing 100% visual reliability no matter the payload, bandwidth or location, our end-to-end real-time surveillance solutions are tried and tested by complex UAV, BVLOS and EVLOS operations worldwide – bringing a level of quality which is unmatched in our industry.
Enquire today
If you’d like more information about any of our products, please complete the form below.
