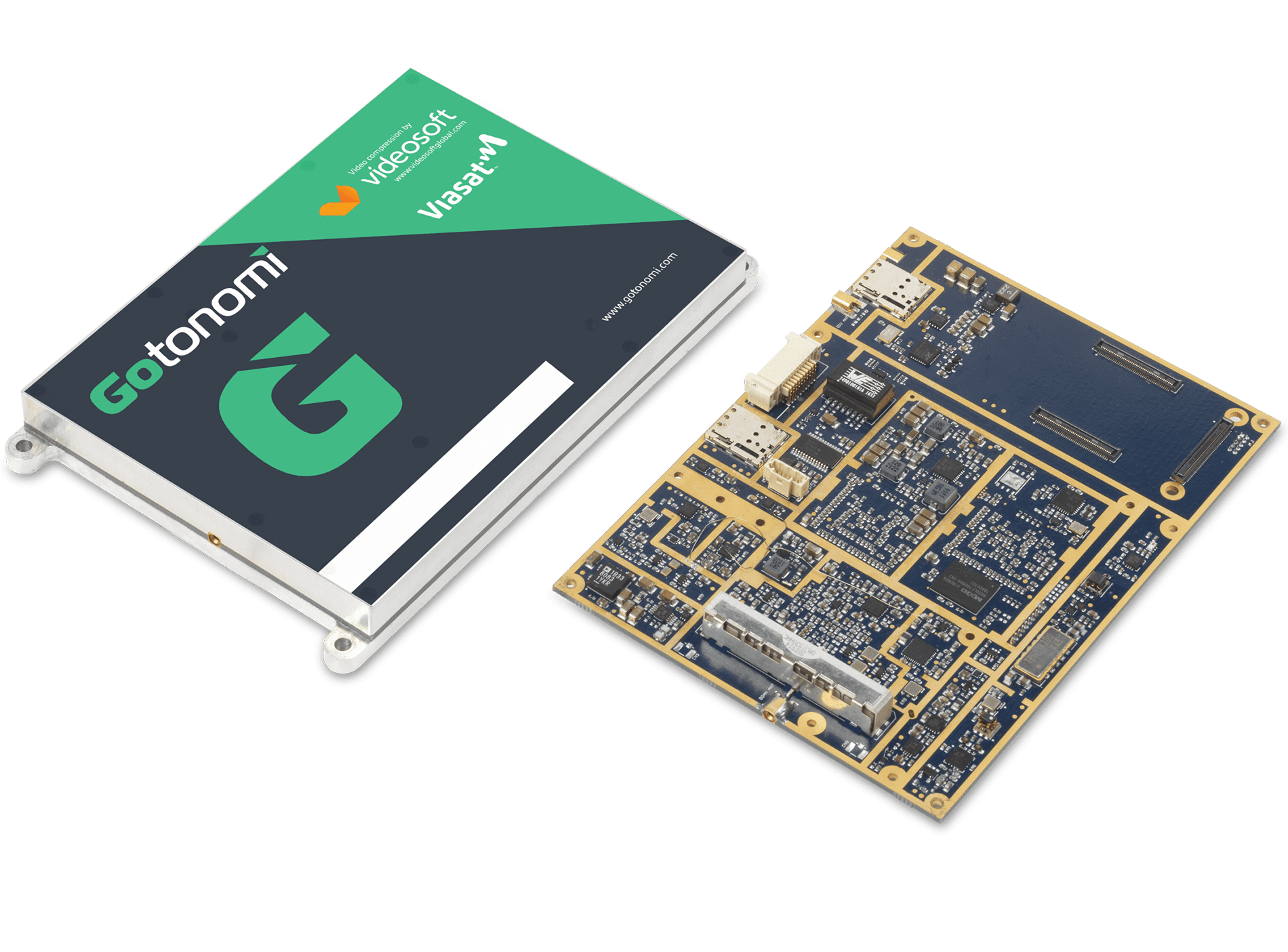

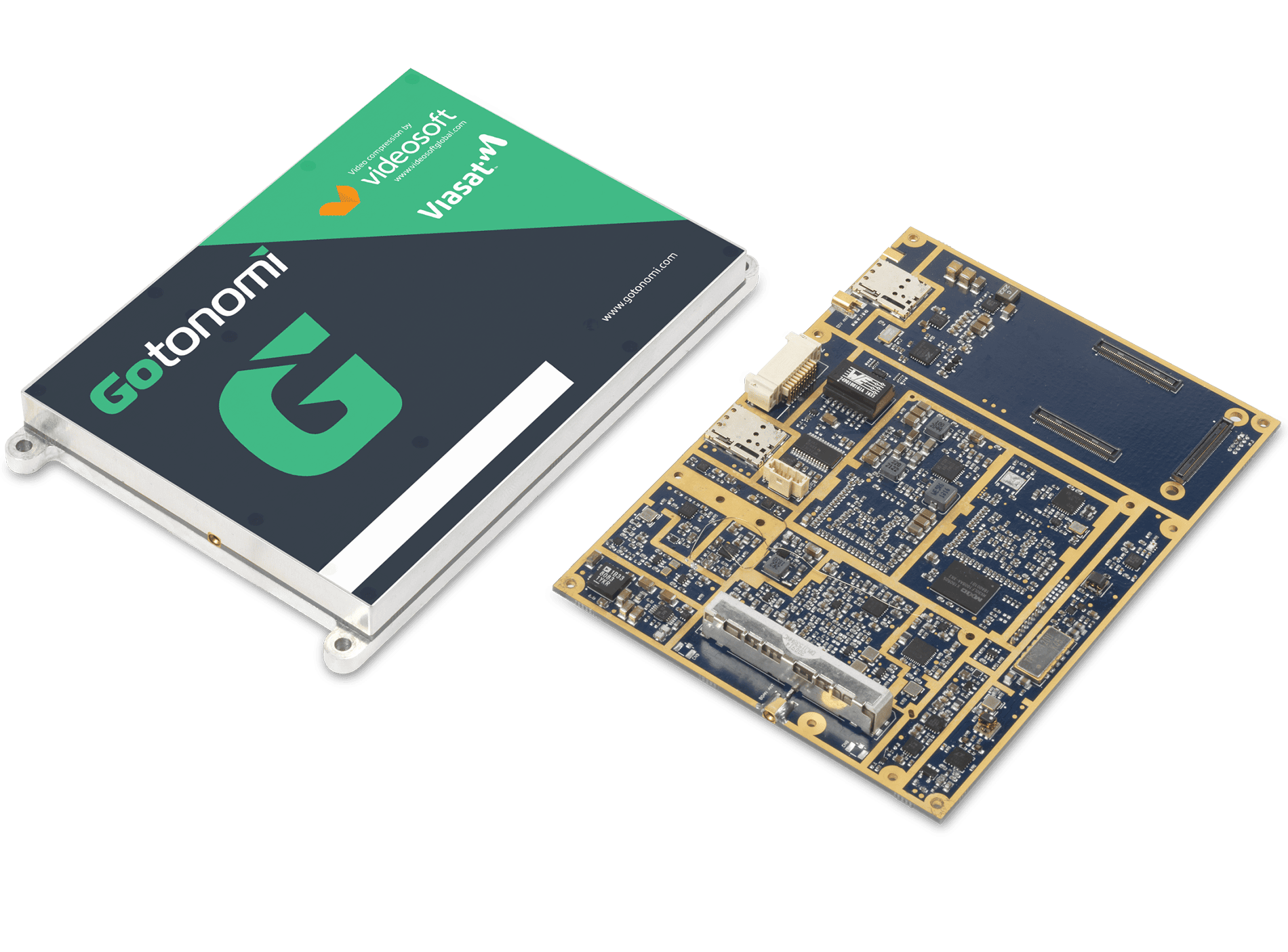

Velaris Multilink Module
A low SWaP-C modular BGAN satellite and LTE data unit, with integrated edge compute, for use with Viasat Velaris data services for UAV applications. Data rates of up to 200kbps possible across the Viasat L-Band satellite network.
Satcom
LTE
Cloud
Regional Class 4 Coverage
Key features
- Low Size: 140mm x 95mm x 15mm tall
- Low Weight: 245g
- Low Power: 16W @ 70kbps bidirectional
- Power supply – 18-36V DC
- Data rates up to 200kpbs (Regional Class 4)
- Operational as a Viasat Regional Class 4 with current network. For full Viasat Velaris coverage future factory upgradable to Class 16
- SOM module enabling edge processing
- Integrated GNSS receiver

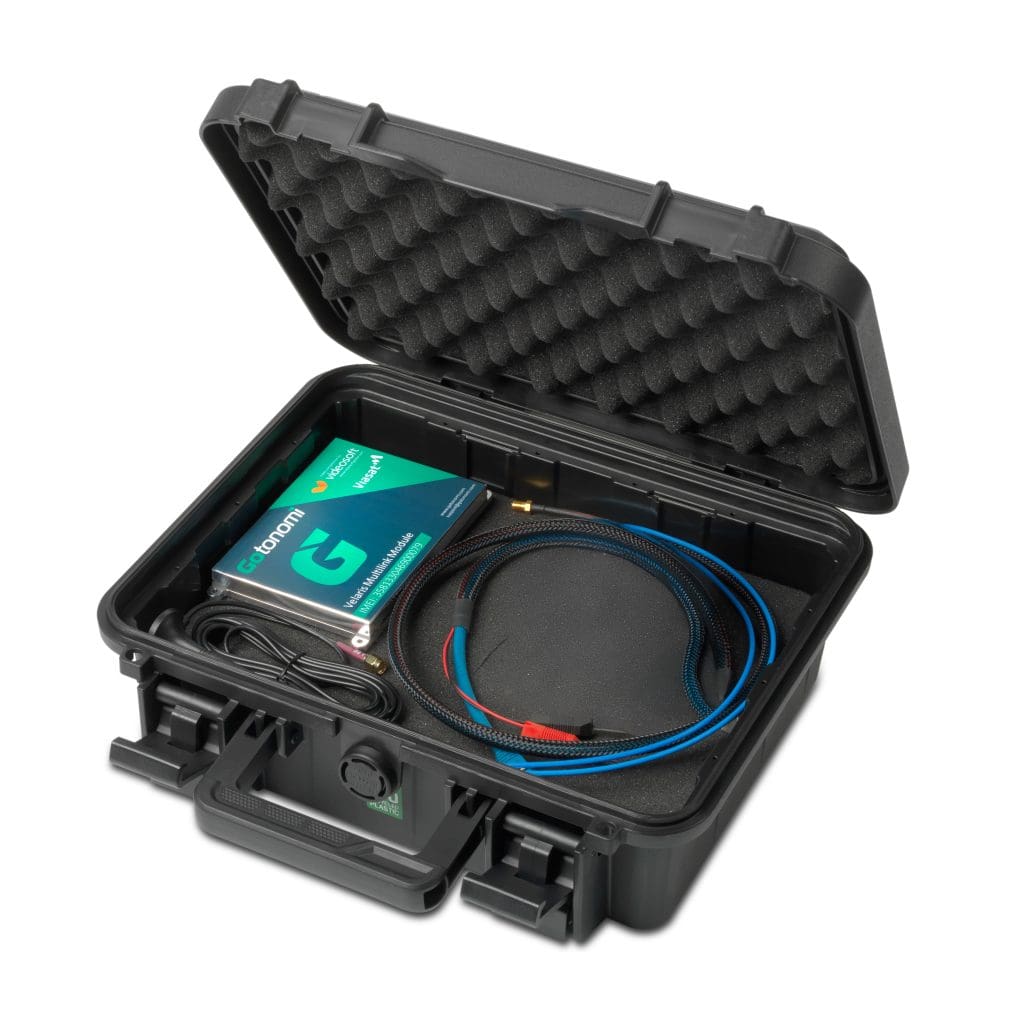

What’s in the box
Gotonomi provides everything required to easily connect your terminal to the satellite network using just a power supply and data cable.
- Gotonomi MultiLink
- Installed Viasat nanoSIM
- 1m combined power/data cable
- Power/data splitter
- Satcom antenna cable (SMPM to SMA Male)
- LTE antenna cable (SMPM to SMA Female)
- LTE antenna
- Configuration card which contains the username and password
- Quick start guide that gives link to Installation Guide
Viasat Velaris airtime services
Gotonomi is a Value-Added Reseller of Viasat Velaris airtime services.
- Provides mission-critical communication, navigation and surveillance services.
- Fleet of six L-band satellites offering resilient global coverage
- Specified 99.75% availability
- 24/7 first tier support
For this the maximum data rate is 200kbps as a background service.
